VLY-B-S系列高速石英砂过滤器是一种常用的介质过滤设备之一，广泛应用于多个领域。介质过滤器丰富多样，包括石英砂、活性炭、无烟煤、锰砂等，不同的工艺会根据具体需求选用不同的介质。例如在冷却循环水系统中，通常使用的是石英砂过滤器。该过滤器在工业及民用的多个场景中发挥着重要作用，如冷却塔系统过滤、制程用水过滤、井水与灌溉用水过滤、废水排放前的过滤以及食品排水过滤等。高速石英砂过滤器主要由常压容器、增压泵、布水器、集水器、滤材、自动化阀组、自动排气阀、智能控制柜、法兰管道、基础等组成，模块化出厂。

The VLY-B-S series high-speed quartz sand filter is one of the commonly used medium filtration evices and is widely applied in multiple fields. Medium filters are rich and diverse, including quartz sand, activated carbon, anthracite, manganese sand, etc. Different processes will select different media according to specific requirements. For instance, in a cooling circulating water system, quartz sand filters are typically used. This filter plays a significant role in various industrial and civil scenarios, such as filtration in cooling tower systems, process water filtration, well water and irrigation water filtration, filtration before wastewater discharge, and food drainage filtration, etc. The high-speed quartz sand filter is mainly composed of a normal pressure container, a booster pump, a water distributor, a water collector, filter materials, an automatic valve group, an automatic air vent valve, an intelligent control cabinet, flange pipes, a foundation, etc., and is delivered in a modular way.

工作原理Working principl

VOLIYA高速石英砂过滤器的过滤过程和反冲洗过程智能化设计，无论过滤过程还是反冲洗过程，都可以根据用户的需求定制。VOLIYA高速石英砂过滤器过滤过程标配为被动式，也可以根据用户的需求设计为全智能控制方式，例如：VOLIYA高速石英砂过滤器过滤过程可根据循环水水质启停，反冲洗可根据悬浮物密度控制。

The VOLIYA high-speed quartz sand filter features intelligent design for both the filtration process and backwashing process. Both the filtration process and the backwashing process can be customized according to the user's requirements. The standard configuration of the VOLIYA high-speed quartz sand filter during the filtration process is passive. It can also be designed as a fully intelligent control mode according to the user's requirements. For example, the filtration process of the VOLIYA high-speed quartz sand filter can be started and stopped based on the quality of the circulating water, and the backwashing can be controlled according to the density of suspended solids.

过滤过程Filtration process

VOLIYA高速石英砂过滤器标配在过滤时，加压水从过滤设备的进水口流入布水系统，通过布水系统的作用，水能够均匀地到达滤料层。当被过滤的水源经过滤料层时，水中的悬浮物、微生物粘泥等杂质会被滤料截留。过滤设备的底部设有带精密锲缝的集水器，过滤后的水会被均匀收集起来，然后从出水口流出并回到系统中。集水器上的精密缝隙具有重要作用，它能有效防止滤料的流失，保证过滤过程的稳定进行。机械联动堞阀（可采用气动或电动方式）控制着水流的方向，确保水流按照预定的路径流动。

The VOLIYA high-speed quartz sand filter is standard. During filtration, pressurized water flows into the water distribution system from the water inlet of the filtration equipment. Through the action of the water distribution system, the water can evenly reach the filter material layer. When the filtered water source passes through the filter material layer, suspended solids, microbial slime and other impurities in the water will be retained by the filter material. The bottom of the filtration equipment is equipped with a water collector with precise wedges. The filtered water will be evenly collected and then flow out from the outlet and return to the system. The precise gaps on the water collector play a significant role. They can effectively prevent the loss of filter material and ensure the stable progress of the filtration process. The mechanically linked flap valve (which can be operated pneumatically or electrically) controls the direction of water flow, ensuring that the water flows along the predetermined path.

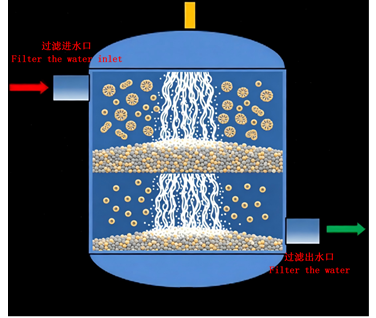

过滤过程Filtration process

反冲洗过程Backwashing process

VOLIYA高速石英砂过滤器标配具备四种反洗模式，分别为手动、TC时钟、远程和压差模式。无论哪种模式触发反洗，过滤设备都会自动转换至反洗状态。此时，加压水改变流动方向，从收水主管进入收水器，然后由下向上进入滤料层，对滤料层进行冲刷。在冲刷过程中，滤料层中截留的污染物会脱落，并从排污口排出过滤设备。反洗持续时间至少为60 - 180秒，且该反冲洗的频率和周期可以设置。当反洗完成后，阀门会自动将系统切换回过滤状态，继续进行正常的过滤工作。

The VOLIYA high-speed quartz sand filter is standard equipped with four backwashing modes, namely manual, TC clock, remote and differential pressure mode. No matter which mode triggers backwashing, the filtration device will automatically switch to the backwashing state. At this point, the pressurized water changes its flow direction, enters the water collector from the main water collection pipe, and then flows upward into the filter material layer to wash it. During the flushing process, the pollutants trapped in the filter material layer will fall off and be discharged from the sewage outlet into the filtration equipment. The backwashing duration should be at least 60 to 180 seconds, and the frequency and cycle of this backwashing can be set. When backwashing is completed, the valve will automatically switch the system back to the filtration state and continue with normal filtration work.

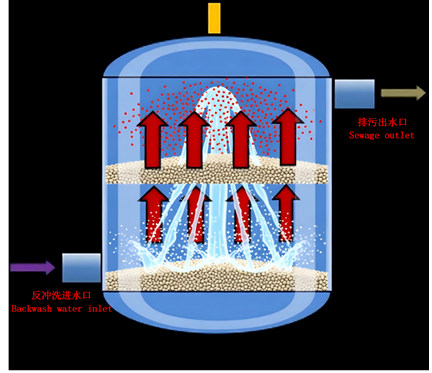

反冲洗过程Backwashing process

产品特点Product features

VOLIYA高速石英砂过滤器具有诸多显著的特点。在冷却塔系统过滤方面，它特别针对工业及民用冷却塔中的污垢杂质及泥土污染去除效果显著，无论是对水质要求较高的各种民用冷却塔，还是重工业型冷却塔水系统，都能有效去除大量的污垢、杂质及泥土。对于制程用水过滤，它能很好地应对杂质污物太多太大、较容易阻塞的情况，确保制程用水的正常供应。在井水与灌溉用水过滤时，可滤除井水与灌溉用水中高含量的颗粒杂质，使井水水质符合一般标准，同时在灌溉用水方面能免除出水口及管路的阻塞问题。在废水排放前的过滤中，它可以有效去除废水中的污物，帮助工厂所排放的废水达到环保标准。对于食品排水过滤，采用活性炭滤材或其它滤材，能够有效去除异味及颜色等，提高食品排水的质量。

The VOLIYA high-speed quartz sand filter has many remarkable features. In terms of filtration in cooling tower systems, it is particularly effective in removing dirt, impurities and soil pollution from industrial and civil cooling towers. Whether it is various civil cooling towers with high water quality requirements or the water system of heavy industrial cooling towers, it can effectively remove a large amount of dirt, impurities and soil. For the filtration of process water, it can effectively deal with situations where there are too many and too large impurities and dirt that are prone to clogging, ensuring the normal supply of process water. When filtering well water and irrigation water, it can remove the high content of particulate impurities in well water and irrigation water, making the well water quality meet general standards. At the same time, in terms of irrigation water, it can avoid the problem of clogging at the water outlet and in the pipeline. In the filtration process before wastewater discharge, it can effectively remove impurities from the wastewater and help the wastewater discharged by factories meet environmental protection standards. For food drainage filtration, the use of activated carbon filter materials or other filter materials can effectively remove odors and colors, etc., and improve the quality of food drainage.
