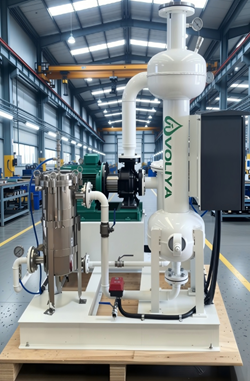

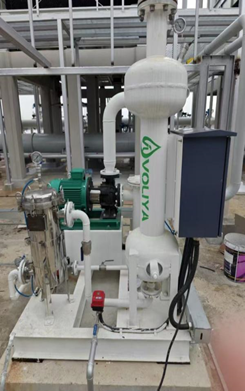

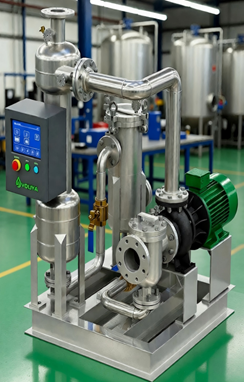

产品概述Product Overview

VLY-CSS-BF系列冷却塔集水盘全自动零排放离心分离吹扫系统是一套集先进技术与创新设计于一体的高效清洗设备。该系统主要由离心分离器、自动排气阀、蓝式过滤器、增压泵、BF袋式过滤器、PLC智能控制柜、基础、管道、压力传感器以及喷嘴等部分组成。各组件协同工作，旨在实现对冷却塔集水盘的全自动清洗，同时达到零排放的环保目标。其广泛应用于电力、化工、冶金、制药等多个行业的冷却塔系统，能够有效去除冷却塔池内的污垢、比重大的杂质，提高冷却塔的冷却效率，延长设备使用寿命，降低运行成本。

The VLY-CSS-BF series of fully automatic zero-discharge centrifugal separation and purging system for cooling tower water collection trays is a highly efficient cleaning device integrating advanced technology and innovative design. This system is mainly composed of a centrifugal separator, an automatic air vent valve, a blue filter, a booster pump, a BF bag filter, a PLC intelligent control cabinet, a foundation, pipelines, pressure sensors and nozzles, etc. All components work in coordination to achieve fully automatic cleaning of the cooling tower's water collection tray and reach the environmental protection goal of zero emissions at the same time. It is widely applied in cooling tower systems of multiple industries such as power, chemical engineering, metallurgy, and pharmaceuticals. It can effectively remove dirt and heavy impurities in the cooling tower pool, improve the cooling efficiency of the cooling tower, extend the service life of the equipment, and reduce operating costs.

工作原理Working principle

VLY-CSS-BF系列冷却塔集水盘全自动零排放离心分离吹扫系统的工作流程严谨且高效。被处理的液体进入篮式过滤器，篮式过滤器能够初步拦截较大的杂质颗粒，起到预处理的作用。经过篮式过滤器过滤后的液体，由增压泵进行增压，然后通过切线入口端进入离心分离器的圆柱形分离室。当液体以切向方式进入分离室后，会在室内形成高速的旋流分离运动。由于杂质颗粒的比重比液体大，在旋流离心力的作用下，杂质颗粒会被迫分离并附着在圆柱形分离腔壁上，随后逐渐沉降到分离器的底部污物收集室。

The working process of the fully automatic zero-discharge centrifugal separation and purging system for the water collection tray of the VLY-CSS-BF series cooling tower is rigorous and efficient. The liquid to be treated enters the basket filter, which can initially intercept larger impurity particles and play a role in pretreatment. The liquid filtered by the basket filter is pressurized by a booster pump and then enters the cylindrical separation chamber of the centrifugal separator through the tangential inlet end. When the liquid enters the separation chamber tangentially, it will form a high-speed swirling separation motion inside the chamber. Due to the fact that the specific gravity of the impurity particles is greater than that of the liquid, under the action of the swirling centrifugal force, the impurity particles will be forced to separate and adhere to the walls of the cylindrical separation chamber, and then gradually settle at the bottom of the separator in the waste collection chamber.

沉降在分离器底部污物收集室的杂质会随着水流回到后端的BF袋式过滤器中。BF袋式过滤器能够进一步截留细小的杂质，确保水质的洁净。系统还配备了压差监测装置，它可以实时监测BF袋式过滤器的压差情况。根据现场实际水质情况，当压差达到一定阈值时，就需要对滤袋进行清洗或更换，以保证过滤效果。经过BF袋式过滤后的离心分离器排污水会回到泵前的篮式过滤器，实现重复使用，这一零排放设计大大提高了水资源的利用率，减少了水资源的浪费和对环境的污染。而分离后洁净的水则会向上流至中心涡流管，并从出水口流出分离器，重新进入冷却塔集水盘安装的扇形喷嘴群进行对集水盘吹扫，VLY-CSS-BF系列冷却塔集水盘全自动零排放离心分离吹扫系统的工作进行循环使用。

The impurities that settle in the waste collection chamber at the bottom of the separator will flow back to the BF bag filter at the rear end with the water. The BF bag filter can further retain fine impurities to ensure the cleanliness of water quality. The system is also equipped with a differential pressure monitoring device, which can monitor the differential pressure of the BF bag filter in real time. According to the actual water quality on site, when the pressure difference reaches a certain threshold, the filter bags need to be cleaned or replaced to ensure the filtration effect. The wastewater discharged from the centrifugal separator after BF bag filtration will return to the basket filter before the pump for reuse. This zero-discharge design significantly improves the utilization rate of water resources, reduces water waste and environmental pollution. The clean water after separation will flow upward to the central vortex tube and exit the separator from the water outlet, then re-enter the fan-shaped nozzle group installed in the cooling tower water collection tray for purging the water collection tray. The operation of the VLY-CSS-BF series fully automatic zero-discharge centrifugal separation purging system for cooling tower water collection trays is recycled.

该系统采用了零排放离心分离器和扇形式喷嘴的组合来有效控制冷却塔盘的清洁。根据冷却塔的面积以及喷嘴的流量，系统会精确核算出正确的喷嘴数量，并将这些喷嘴均匀分布在集水盘底部。喷嘴能够对冷却塔集水盘进行循环吹扫，促使冷却塔集水盘保持长期清洁，从而提高整个冷却塔系统的运行效率。

This system adopts a combination of zero-emission centrifugal separators and fan-shaped nozzles to effectively control the cleaning of the cooling tower discs. Based on the area of the cooling tower and the flow rate of the nozzles, the system will precisely calculate the correct number of nozzles and evenly distribute them at the bottom of the water collection tray. The nozzles can circulate and blow the water collection tray of the cooling tower, keeping it clean for a long time and thereby improving the operational efficiency of the entire cooling tower system.

产品特点Product features

全自动运行是该系统的一大显著特点。通过PLC智能控制柜，系统可以实现自动化控制，无需人工频繁干预。它能够根据预设的程序和参数，自动完成对冷却塔集水盘液体的过滤、分离、清洗等一系列操作，大大节省了人力成本，提高了工作效率。

Fully automatic operation is a notable feature of this system. Through the PLC intelligent control cabinet, the system can achieve automatic control without frequent manual intervention. It can automatically complete a series of operations such as filtration, separation and cleaning of the liquid in the cooling tower's water collection tray according to the preset program and parameters, which greatly saves labor costs and improves work efficiency.

零排放设计是该系统的核心优势之一。在整个清洗过程中，系统能够将分离出的杂质进行有效截留，并将处理后的水进行循环利用，实现了水资源的零排放。这不仅符合环保要求，减少了对环境的污染，还为企业节约了大量的水资源和污水处理成本。

Zero-emission design is one of the core advantages of this system. Throughout the entire cleaning process, the system can effectively retain the separated impurities and recycle the treated water, achieving zero discharge of water resources. This not only meets environmental protection requirements, reduces pollution to the environment, but also saves a large amount of water resources and sewage treatment costs for enterprises.

高效的清洗效果得益于其先进的离心分离技术和合理的喷嘴布局。离心分离器能够快速、有效地分离出液体中的杂质，而均匀分布的扇形式喷嘴则可以对冷却塔盘进行全面、细致的吹扫，确保冷却塔盘的每一个角落都能得到清洁，从而显著提高冷却塔的冷却效率，降低能耗。

The efficient cleaning effect is attributed to its advanced centrifugal separation technology and reasonable nozzle layout. The centrifugal separator can quickly and effectively separate impurities from the liquid, while the evenly distributed fan-shaped nozzles can conduct a comprehensive and meticulous purge of the cooling tower tray, ensuring that every corner of the cooling tower tray is clean, thereby significantly improving the cooling efficiency of the cooling tower and reducing energy consumption.

系统的稳定性和可靠性也值得称赞。该系统的各个组件均采用了高品质的材料和先进的制造工艺，具有良好的耐腐蚀性和耐磨性。系统还配备了完善的监测和保护装置，能够实时监测系统的运行状态，及时发现并处理潜在的故障，确保系统的长期稳定运行。

The stability and reliability of the system are also worthy of praise. All components of this system are made of high-quality materials and advanced manufacturing processes, featuring excellent corrosion resistance and wear resistance. The system is also equipped with complete monitoring and protection devices, which can monitor the operation status of the system in real time, promptly detect and handle potential faults, and ensure the long-term stable operation of the system.

该系统还具有良好的适应性和可扩展性。它可以根据不同冷却塔的规格和水质情况进行灵活调整和配置，以满足各种复杂工况的需求。并且，随着企业的发展和需求的变化，系统还可以方便地进行升级和扩展，为企业提供持续的技术支持和服务。

This system also has good adaptability and scalability. It can be flexibly adjusted and configured according to the specifications of different cooling towers and water quality conditions to meet the demands of various complex working conditions. Moreover, as the enterprise develops and its demands change, the system can also be conveniently upgraded and expanded to provide continuous technical support and services for the enterprise.

选型参数Selection parameters

喷嘴参数Nozzle parameters
